Methanol rectification in three or four columns with the dual-effect energy-saving technology of pressurized column and atmospheric column, energy consumption was reduced by 40% compared to double-column process. Heat utilization of steam condense water minimizes the energy consumption further.
1. Unique design of atmospheric column benefits column control operations;
2. Integrated column internal design of packing and trays, ensuring a long period of safe and stable operation;
3. Nearly 20 sets commercial applications, the methanol quality reached the required standards.

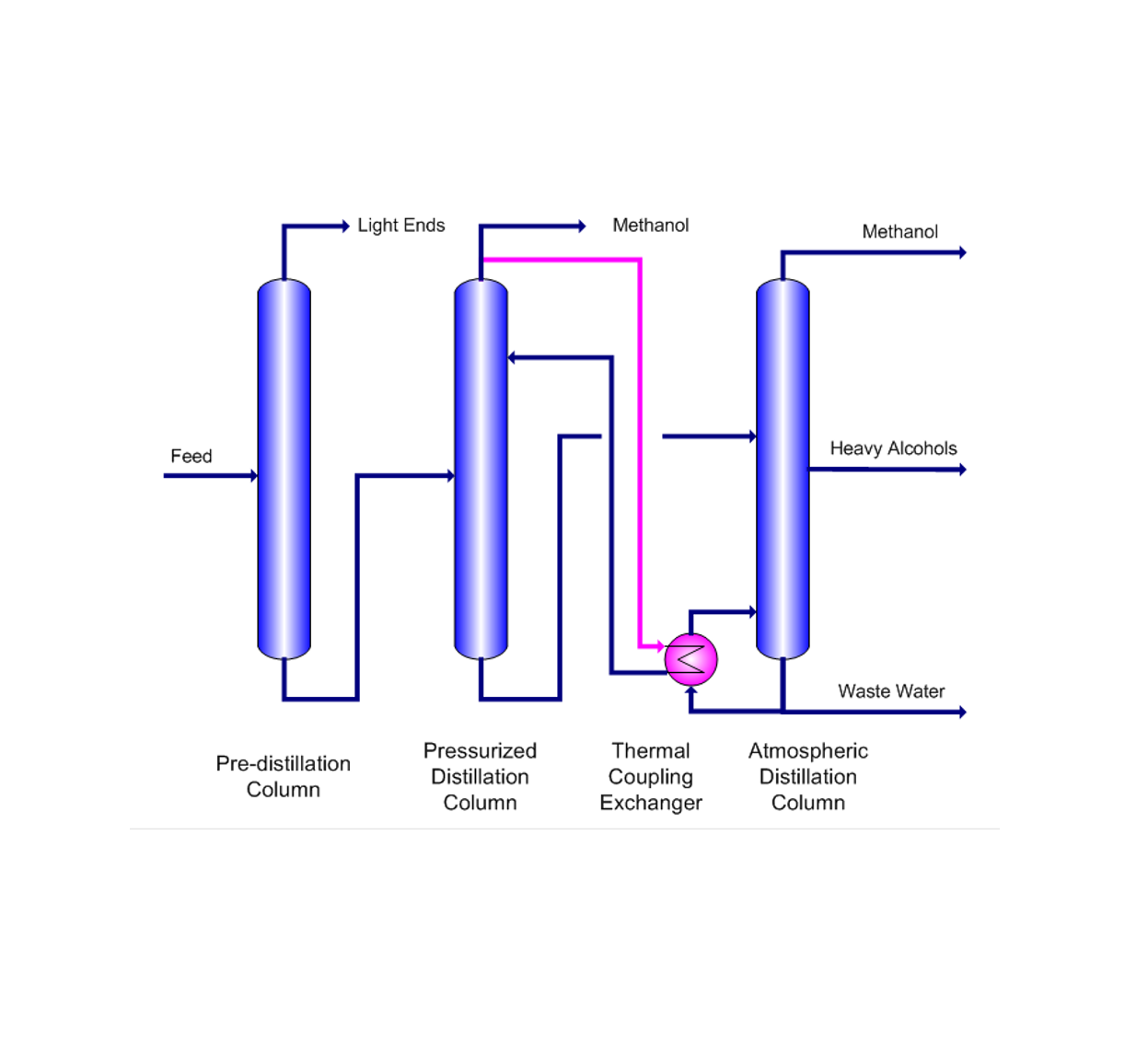

Simplified Process Flowsheet Drawing
