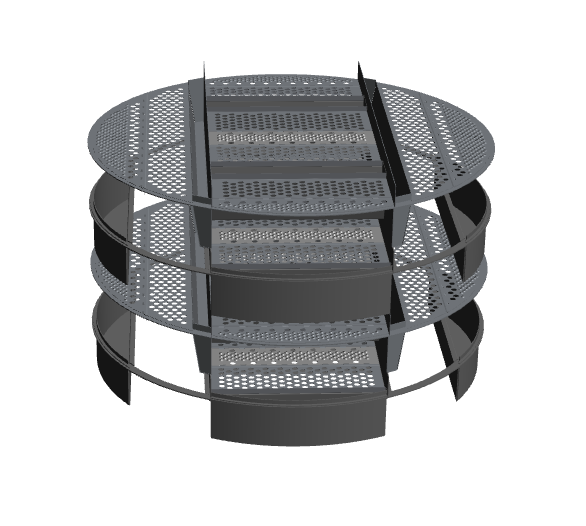

MDV® high-capacity tray (with granted patents) is a high efficient multi-downcomer tray with multi-pass tray flow characteristics. Based on ADV® high performance tray, MDV® tray improved the downcomer layout to higher liquid loading. It has been applied in C3 splitter revamp successfully.
1. ADV® valve or fixed valve, bubble promoter and new connect joint structures are applied to eliminate dead zone;
2. Liquid on the tray present ideal plug flow and uniform bubble;
3. BPV valves are applied on the tray below downcomer, which completely eliminates tray leakage;
4. Tray efficiency is increased by 20% compared to traditional multi-downcomer trays;
5. Suitable for high liquid loading case, high-pressure distillation and absorption system.
